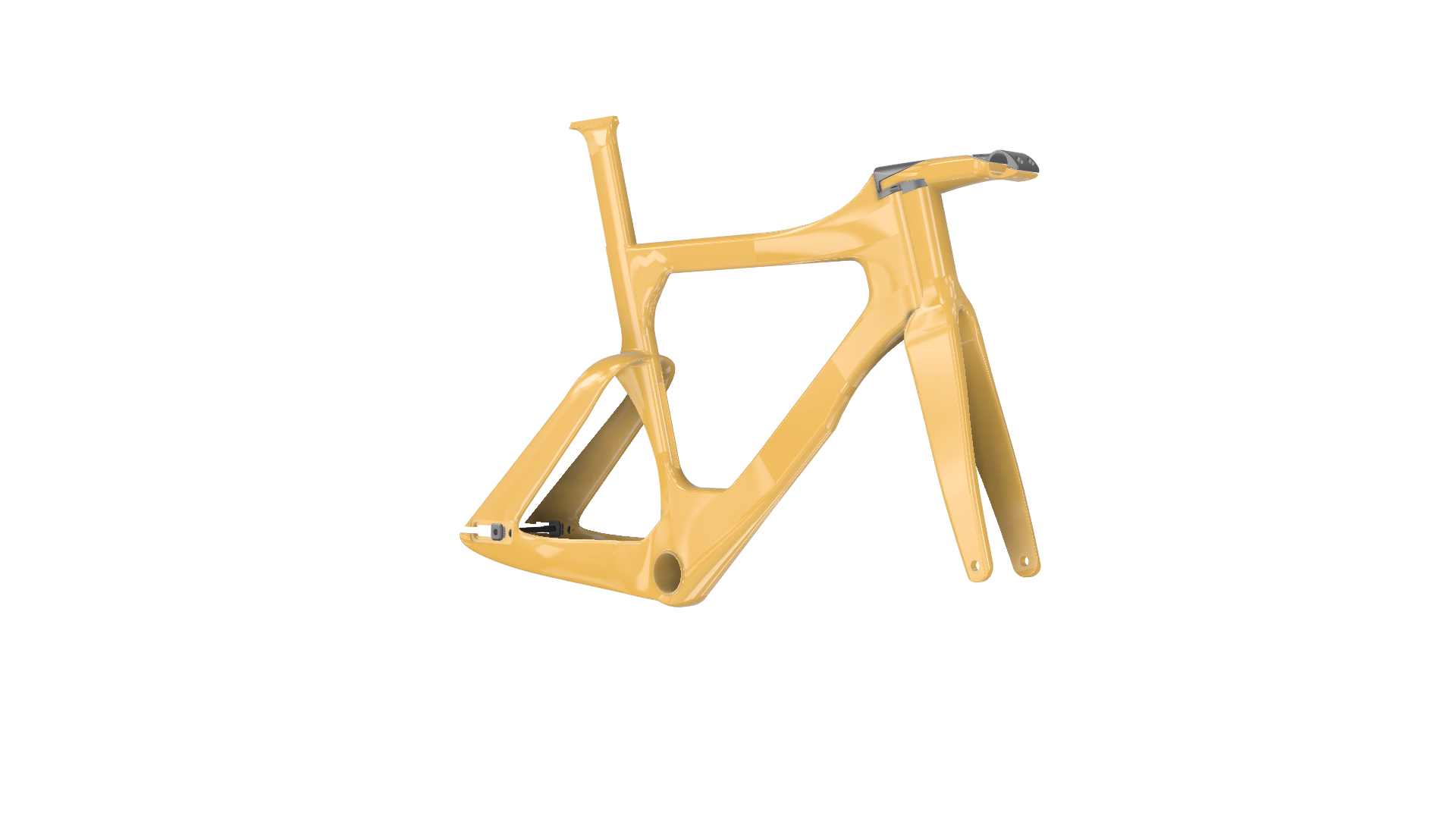

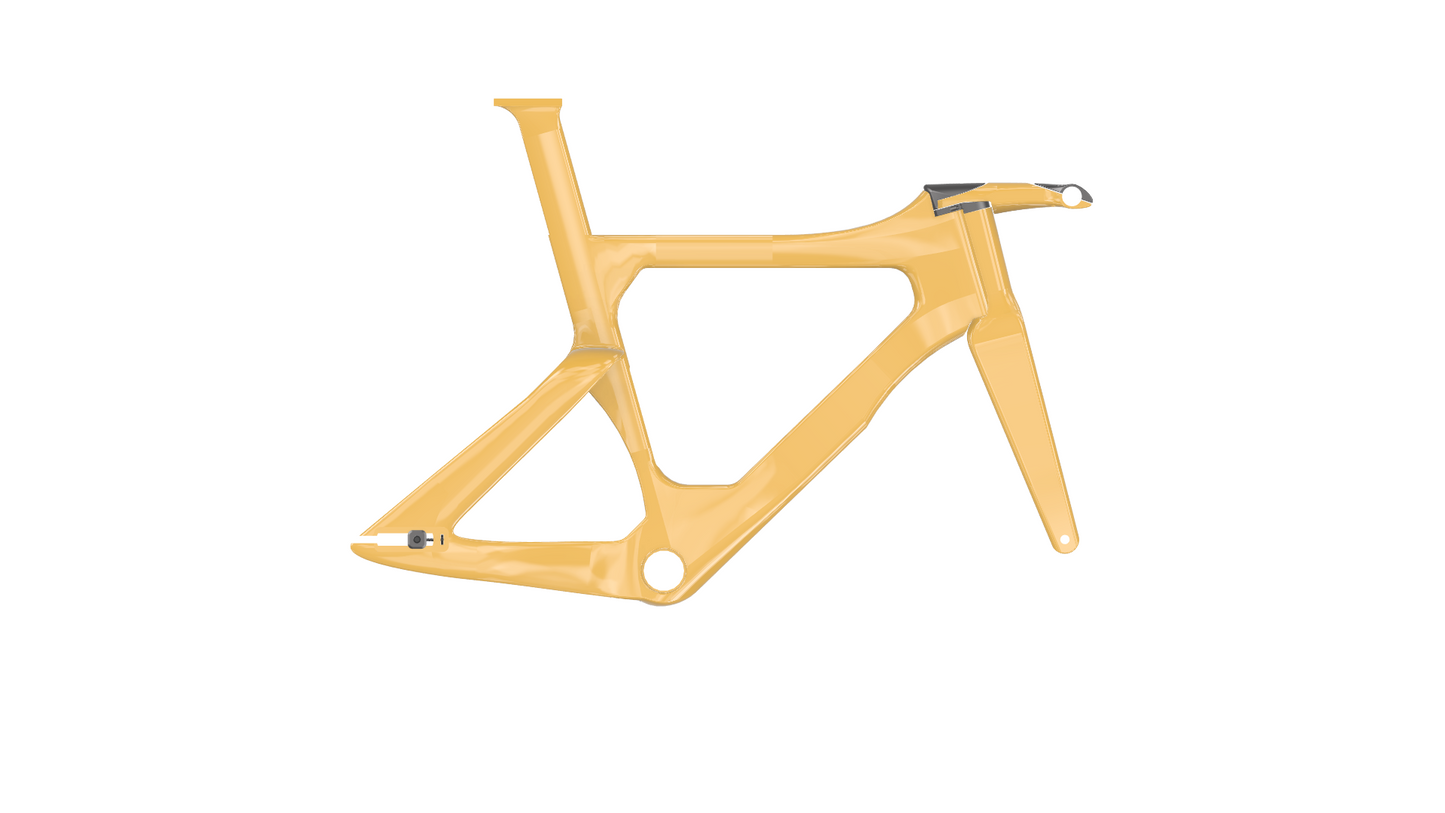

Polymer Bikes Frame Kit Model: POLY-kit-24p (Peryton)

Material: Super Polymer Composite, T800 Carbon Fiber

Model: POLY-kit-24p

Components: Frame, Fork, Seatpost, Seatclamp, Headset, Misc. Assembly Parts

Frame Size: S/M, L, XL

Weight: Frame (Unpainted) 1720±60g,

Fork: 610±20g, SP:330±15gHead Tube: 1-1/8" - 1-1/8" (upper 41.8mm lower 41.8mm, )

Seat Post: Specific 400mm length, 0mm offset, Compatible with 7 x 7mm and 7 x 9mm rails

Bottom Bracket: BSA threaded

Tire: 700*28C

Rear 09*120mm, Fork 09*100mm

Testing Standard: ISO 4210 + 20%

Warranty: Lifetime

Bails of our PBO(Poly-p-phenylene Benzobisoxazole) fibers are woven in orientations developed for our unique form. The fabric is infused with a proprietary epoxy resin blend before being partially cured and chilled for storage.

The composite sheets are sectioned then layered around PMI(Polymethacrylimide) foam reinforcements. Prior to curing, the unit is preformed and “De-bulked” on a vacuum pressure form surface. This crucial step eliminates the voids between fabric layers ensuring a uniformly effective layup.

Finally, the bicycle’s thermoset materials cure under pressure inside our autoclave. What emerges is a module with unchallenged strength and stiffness.
