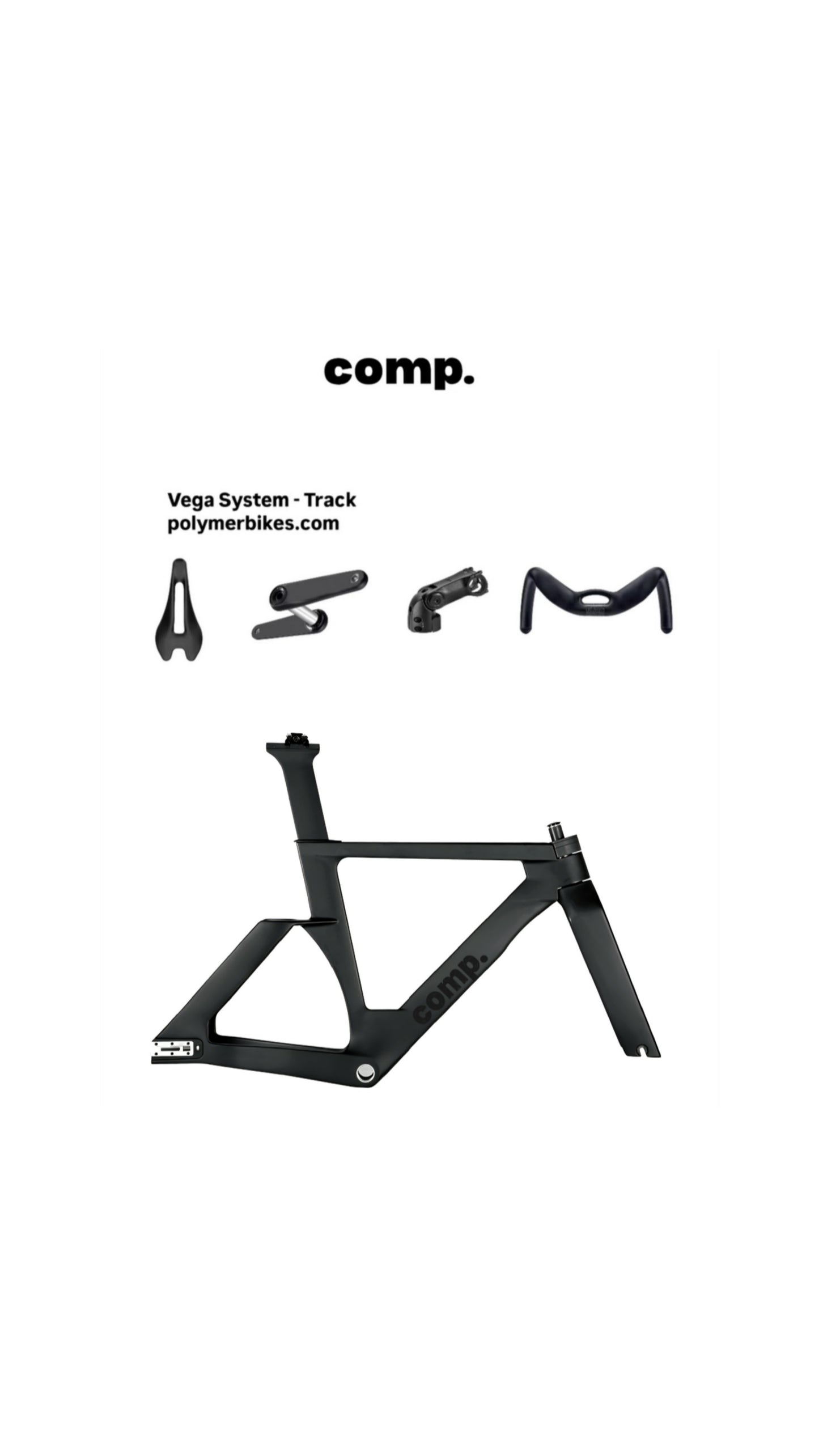

Comp Cycles Vega Track Bike System • Frameset And Components

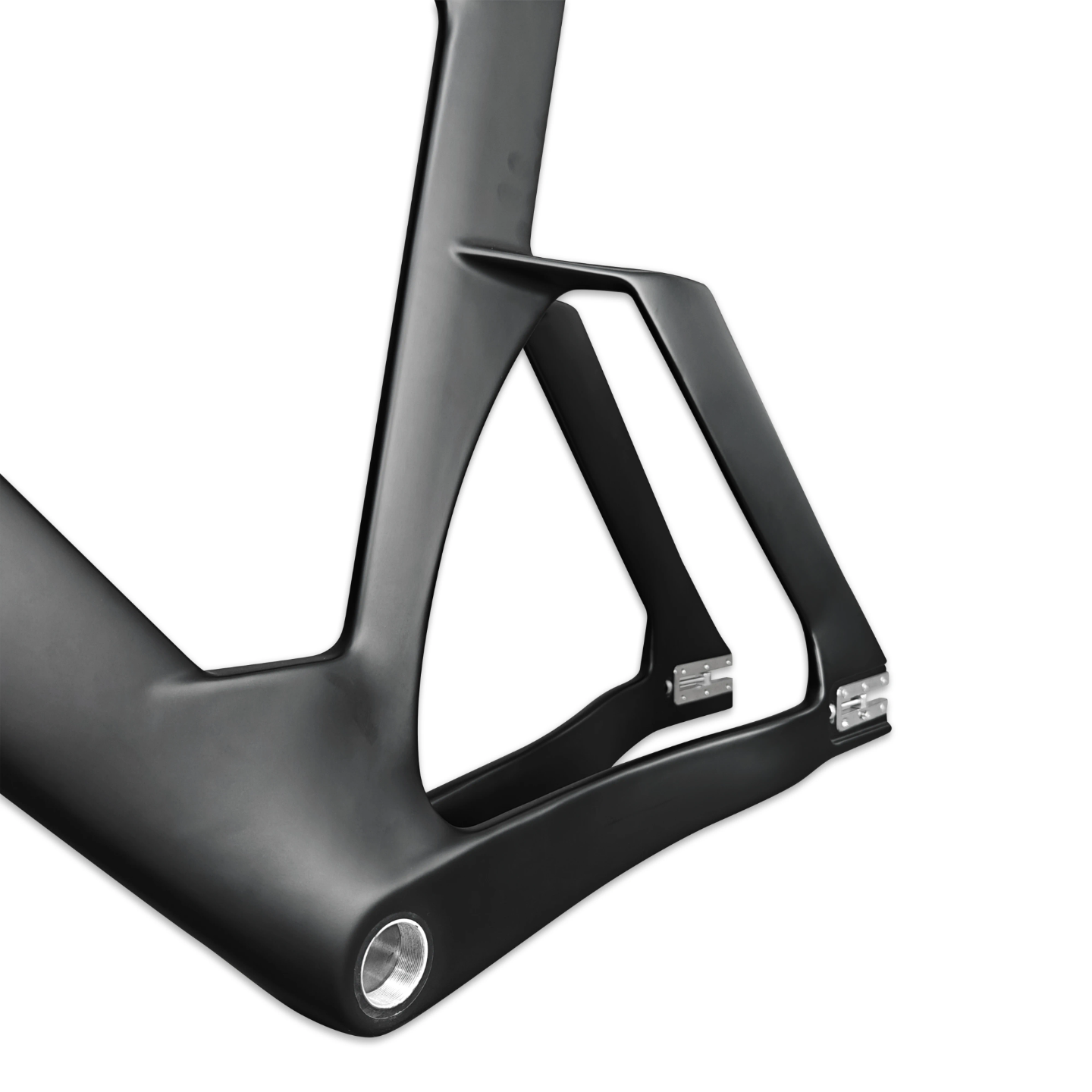

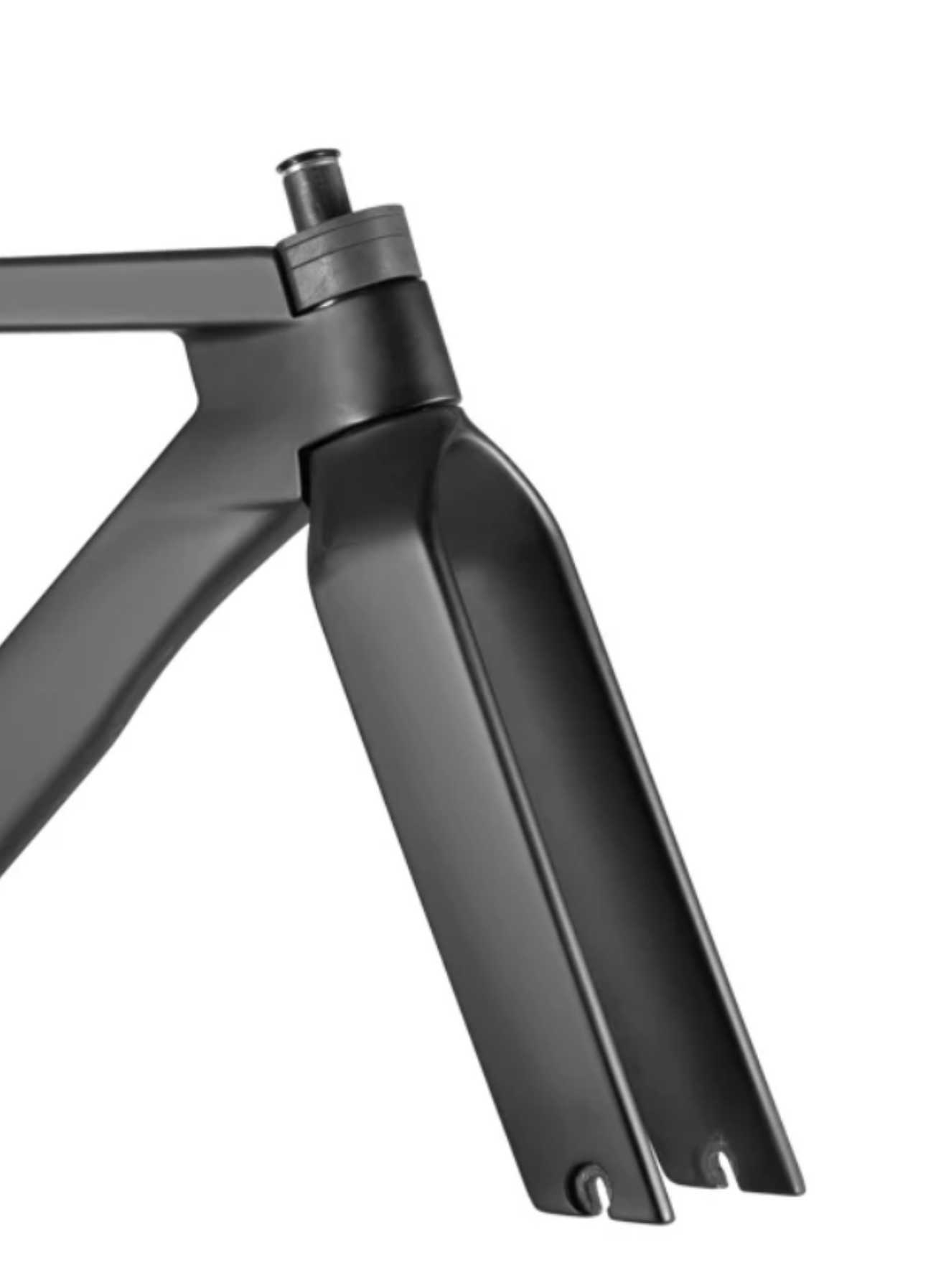

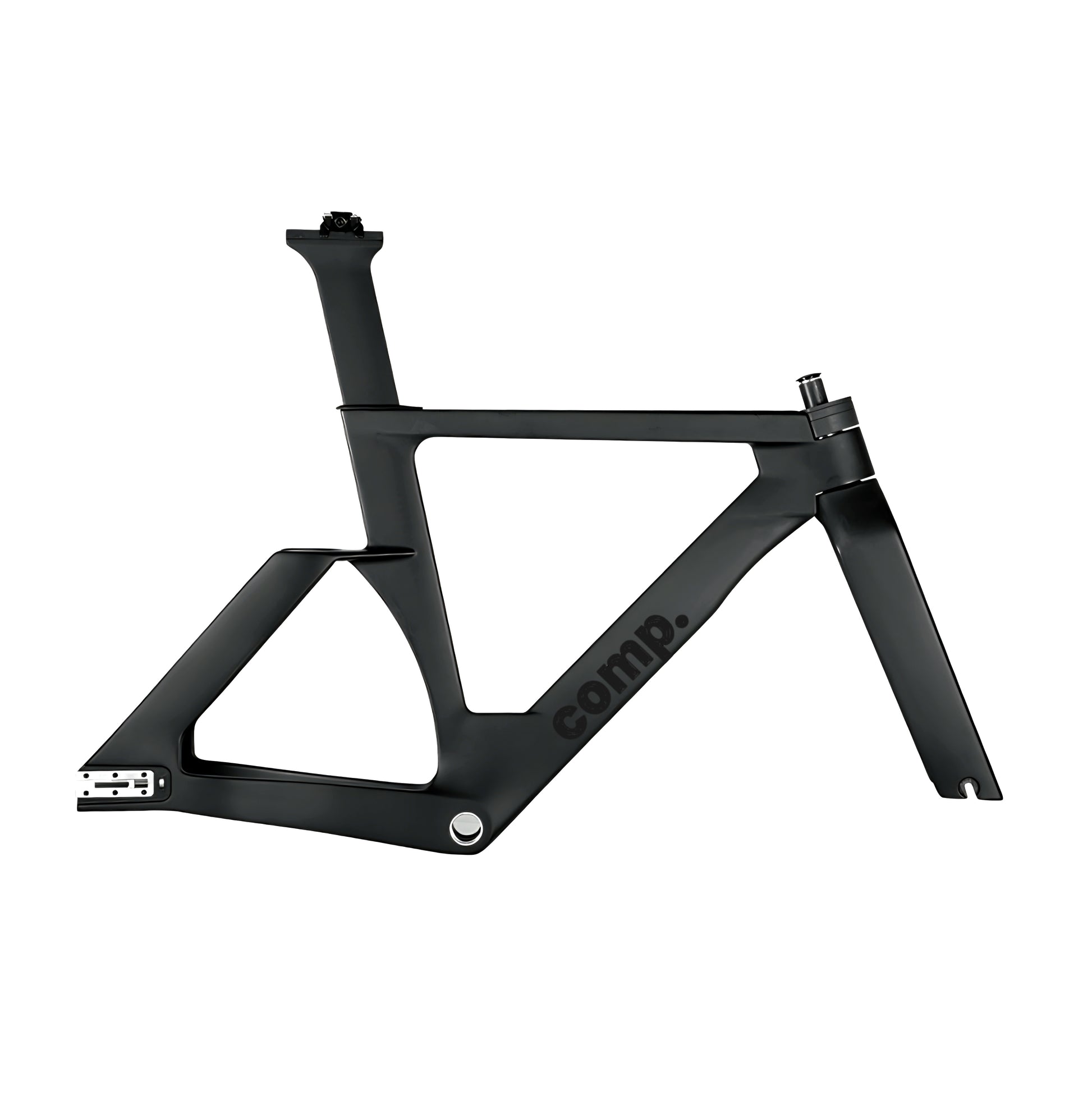

1.Comp Cycles Vega Track Frameset 2025

Model: COMP-kit-25v

Includes: Frame, Fork, Seatpost, Seatclamp, Headset, Misc. Assembly Parts

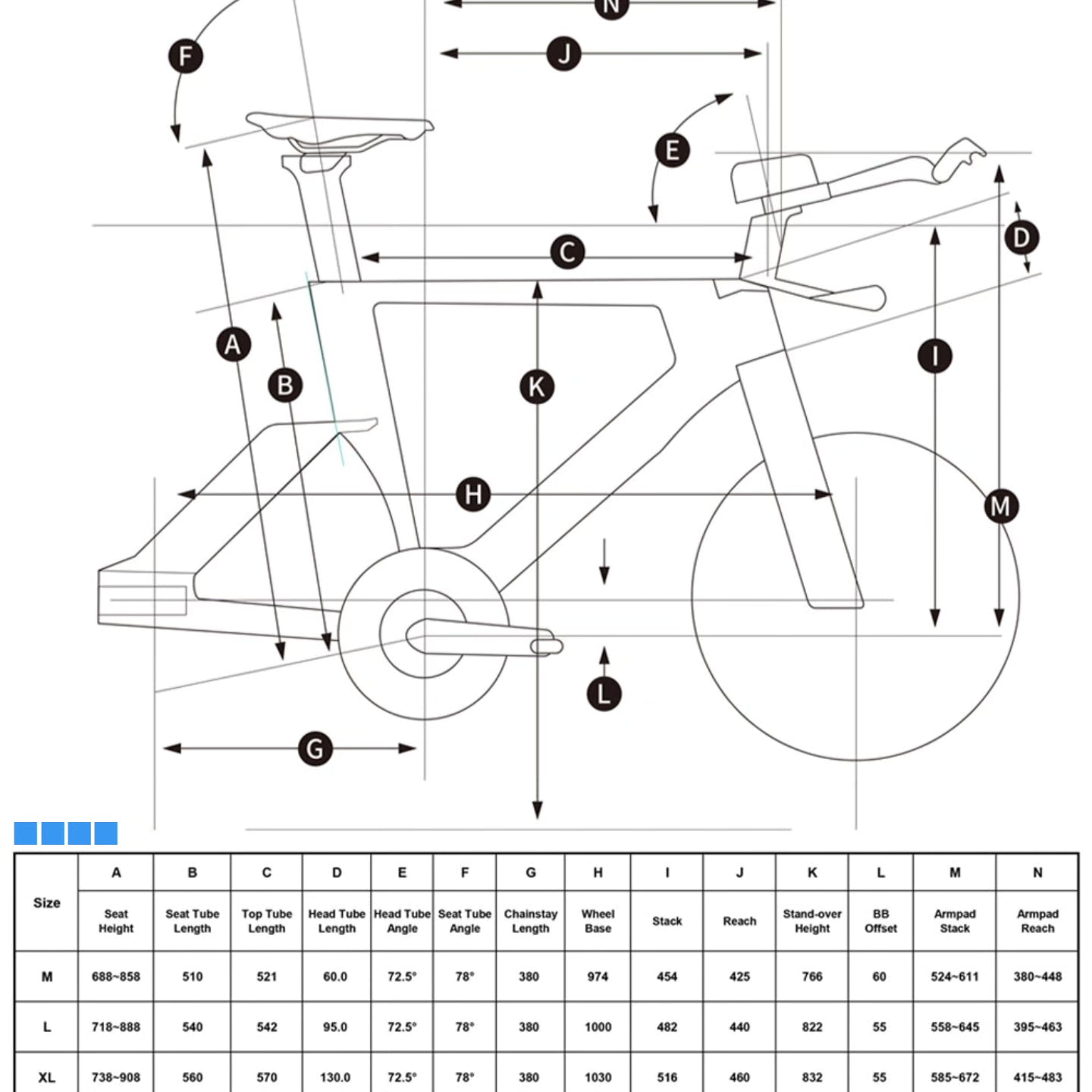

Size: M, L, XL

Weight: Frame (Unpainted) 1600±60g, Fork: 530±20g, Seatpost:240±15g

Head Tube: 11/8" - 11/2"

Seat Post: Frame Specific 400mm length, 0mm ofset, Compatible with 7 x 7mm and 7 x 9mm rails

Bottom Bracket Shell: BSA threaded

Tire Clearance: 700*28C

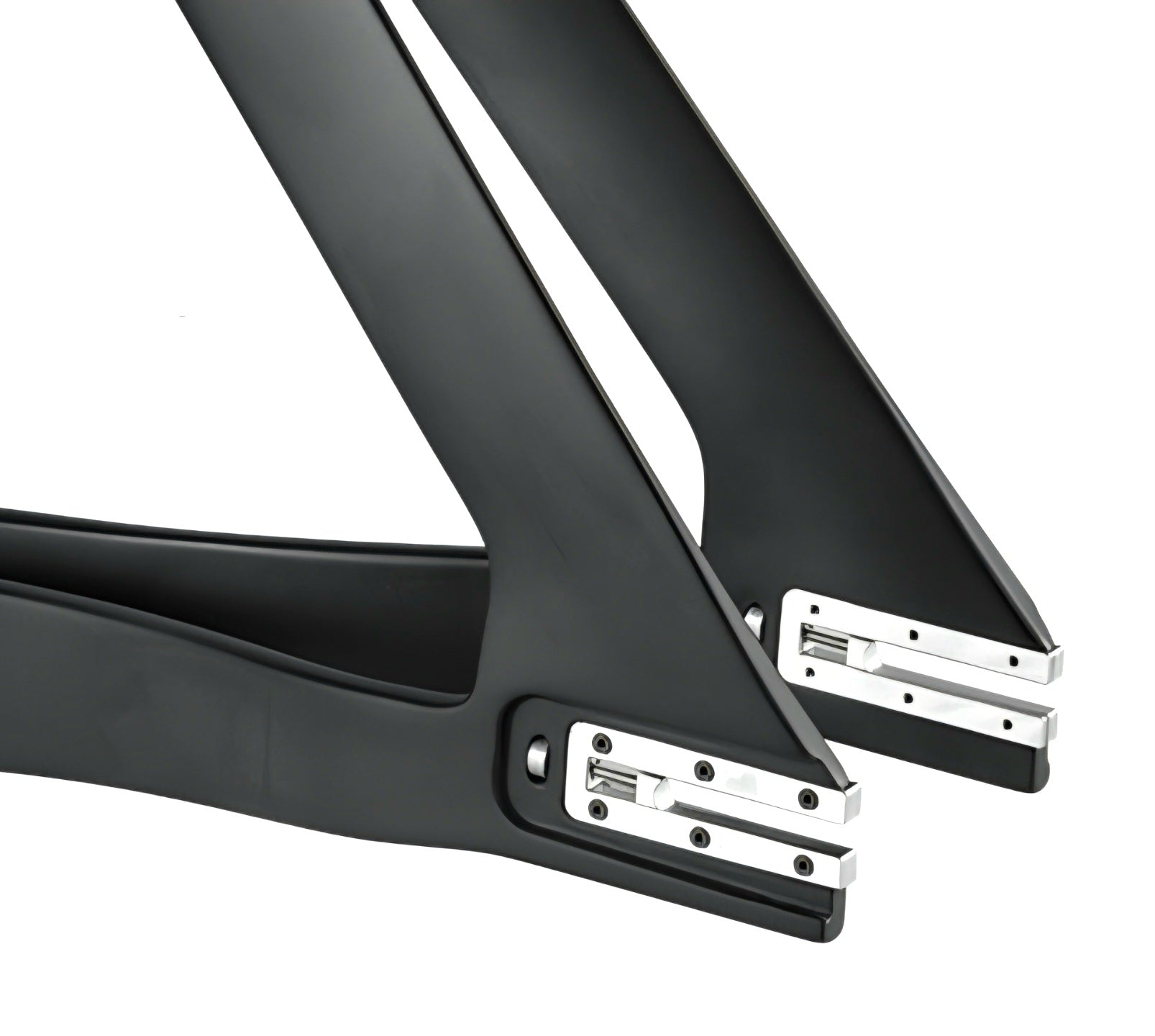

O.L.D: Rear 09*120mm, Fork 09*100mm

 Testing Standard: ISO 4210 + 20%

Warranty: 5 years

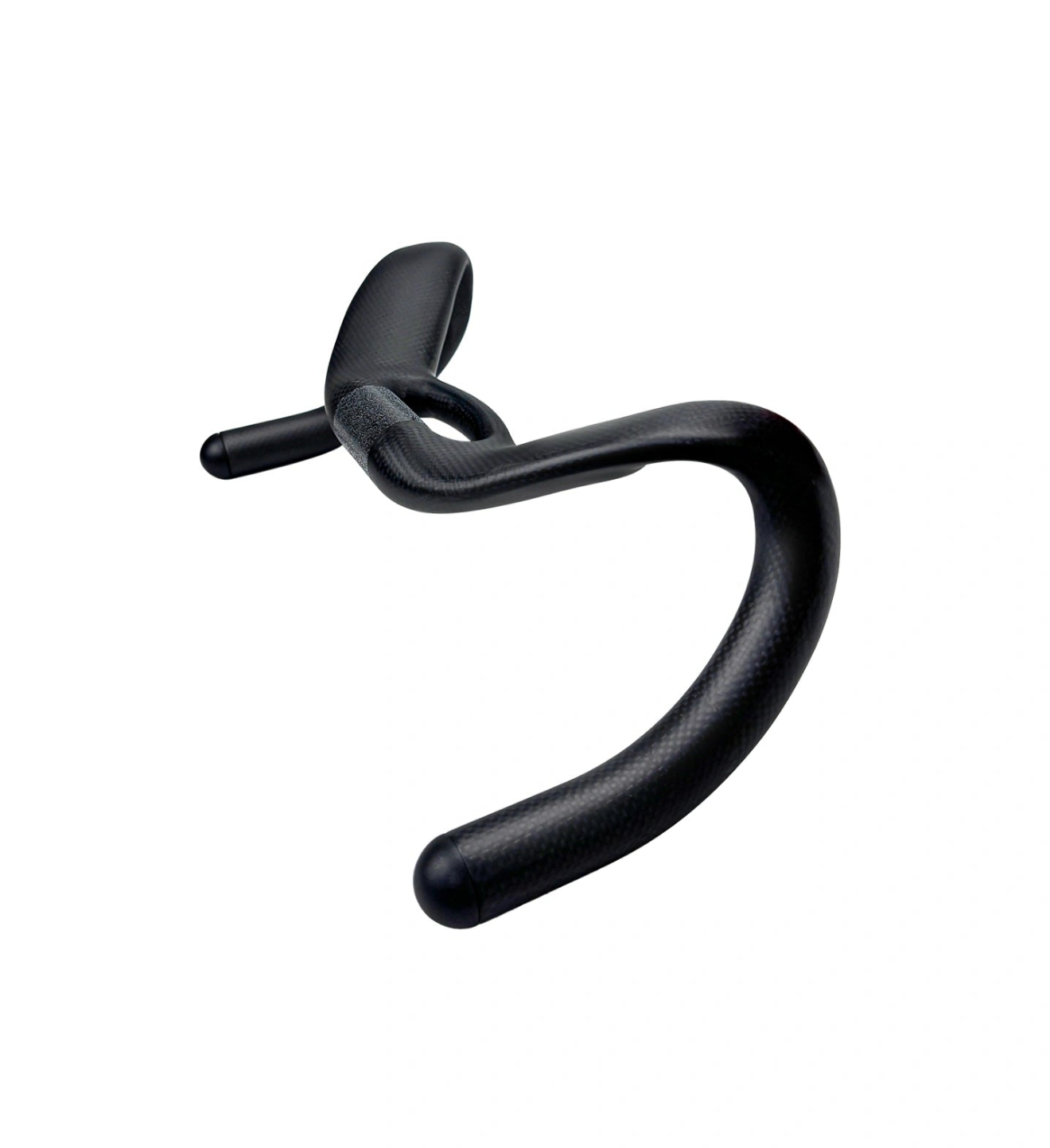

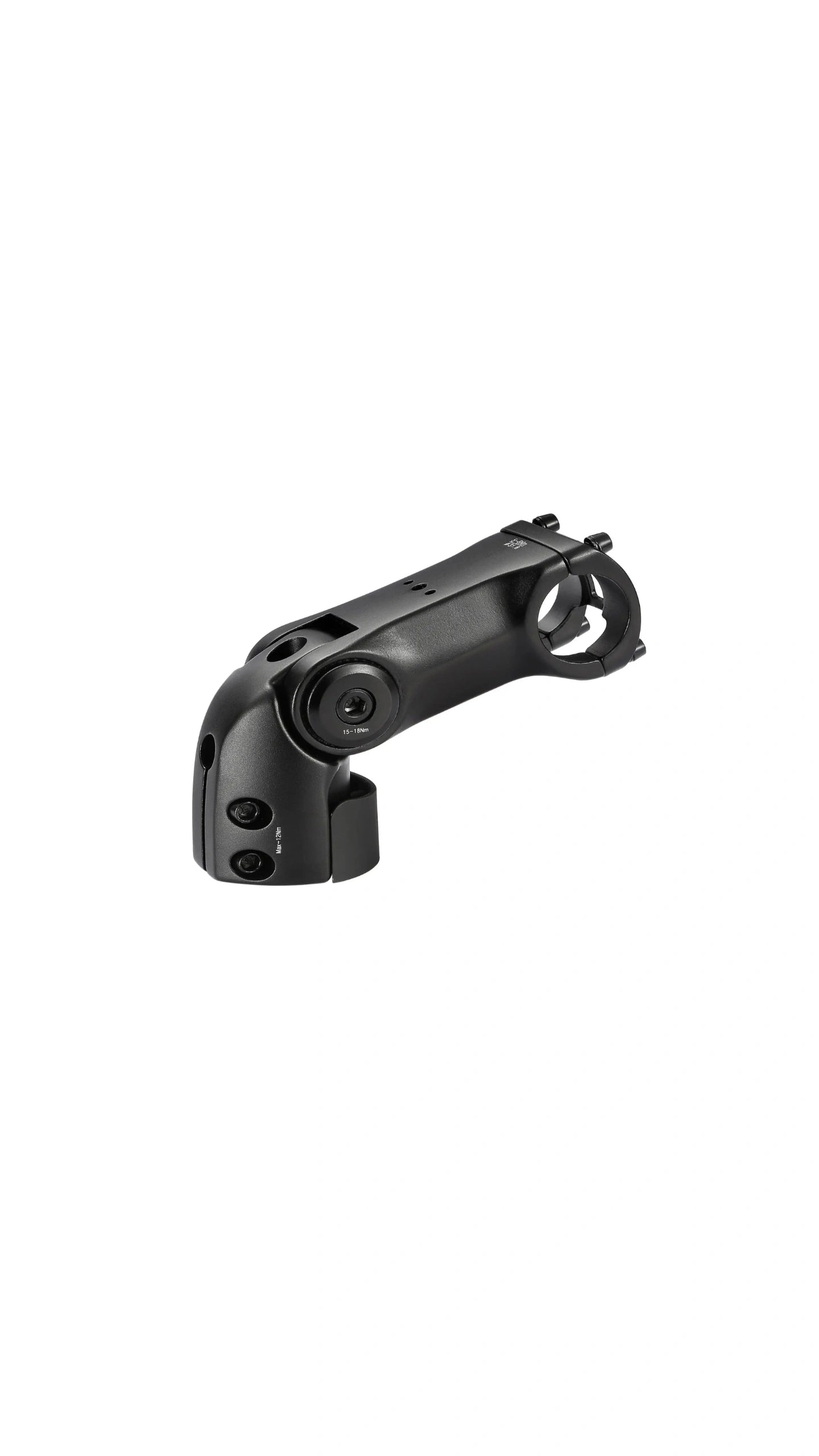

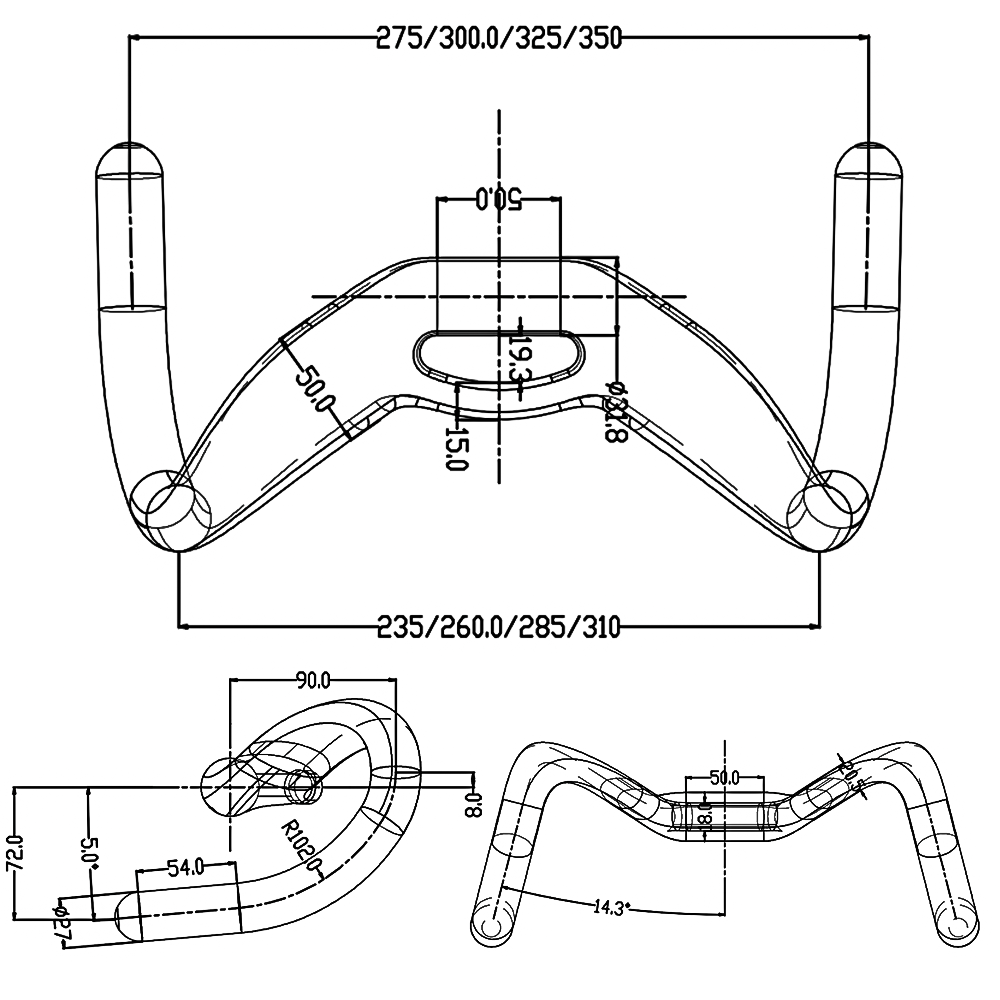

2.Comp Cycles Sprint Handlebar Model: COMP-HBs-25v + Adjustable Stem Model: COMP-ast-25v (size 80mm or 90mm by request)

Use: Sprint

Material: Carbon fiber T700 (24T/4900Mpa)

Appearance: Matte 3K plain weave carbon fiber

Weight: 285g +/- 5g

Width: 275mm, 300mm, 325mm, or 350mm

Clamp diameter: 31.8mm

Rigidity (hardness): 140N/mm

Compression resistance (strength): Unilateral 1600N (160KG)

Fatigue Test: 3HZ/140000 times

Warranty: 5 years

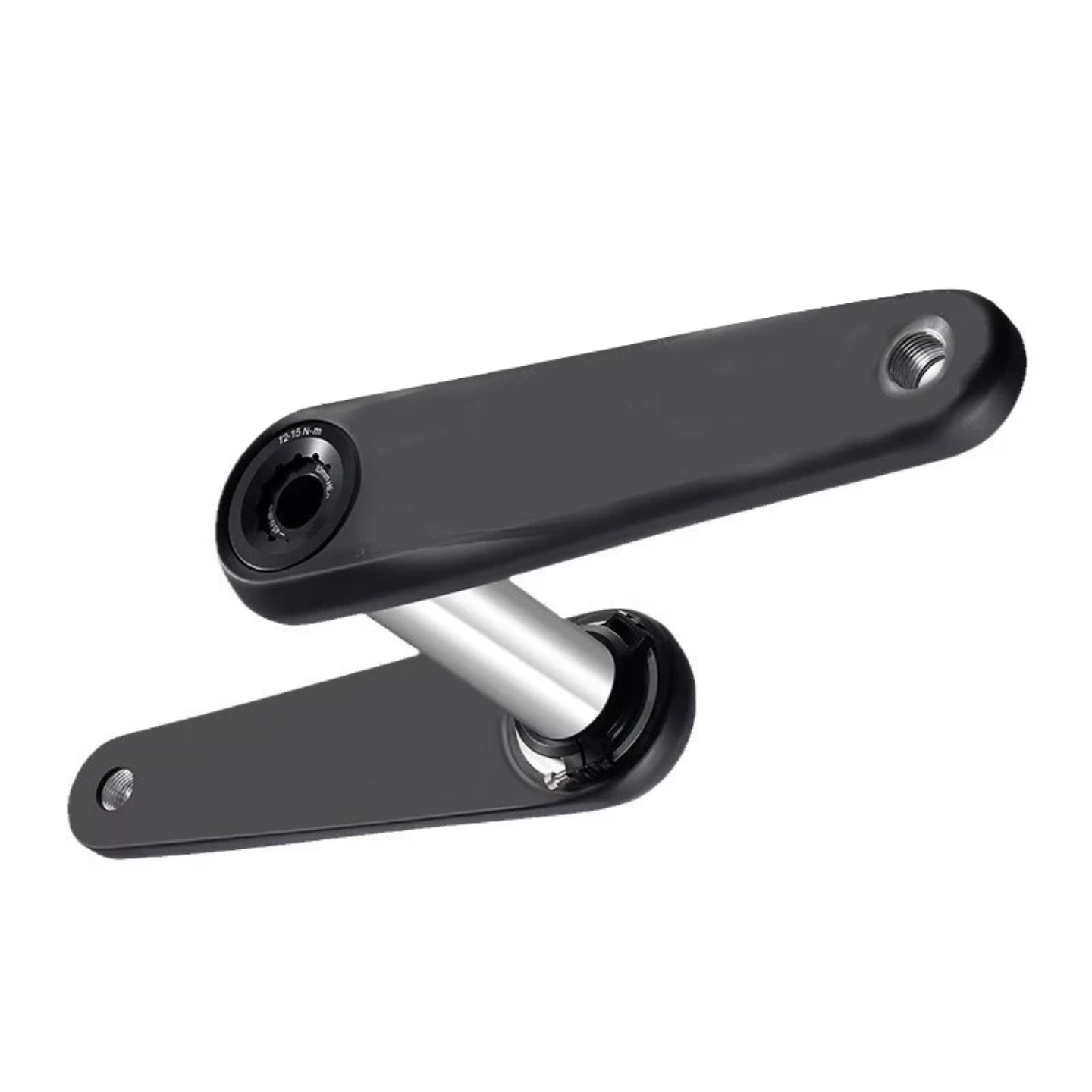

3.Comp Cycles Crankset Model: COMP-cr-25v (Vega)

Carbon Fiber Modular Crankset

Easton Compatible, Spindle: 24mm

Weight: 380g (165mm)

Q-Factor: 150mm

Warranty: 5 years

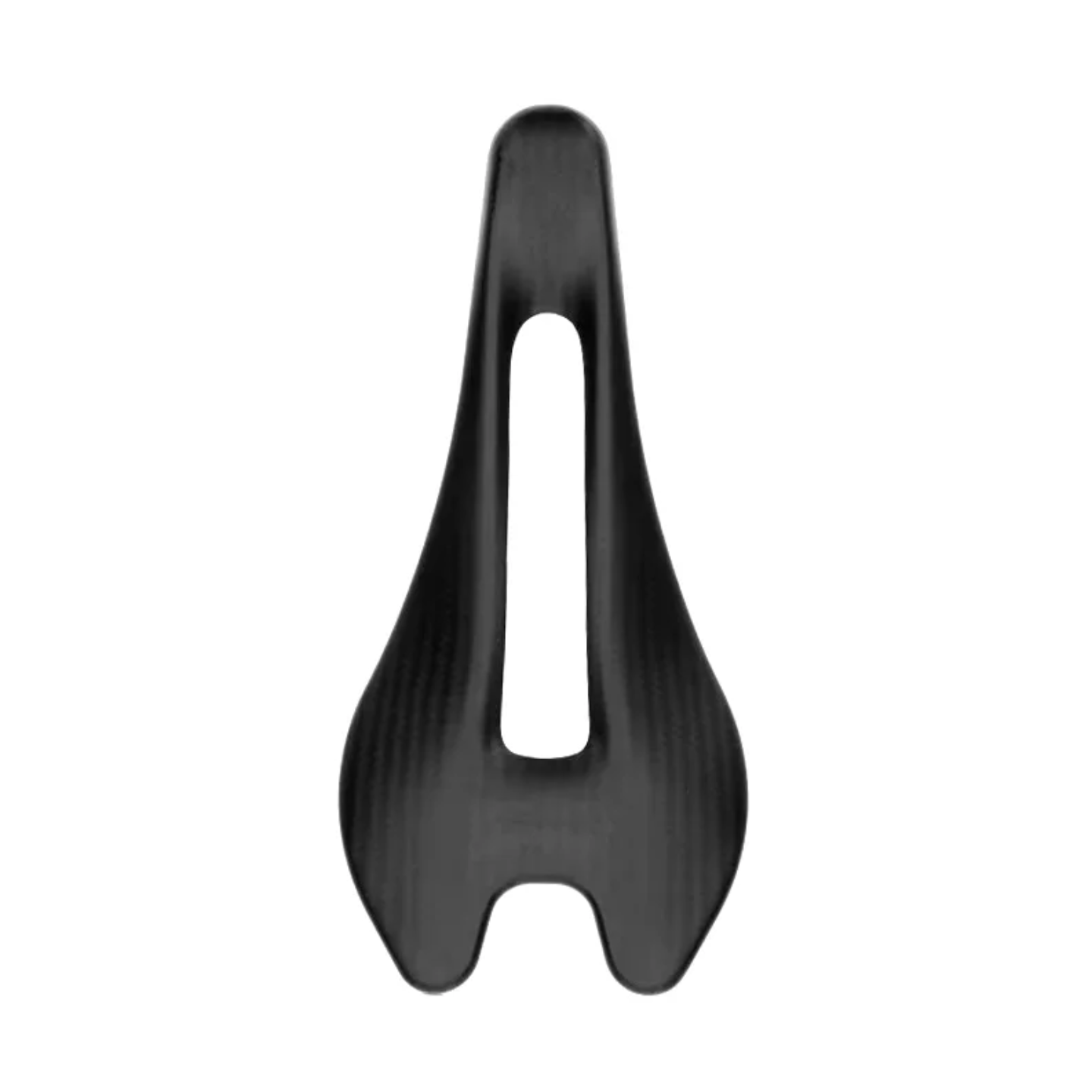

4.Comp Cycles Vega Standard Carbon Saddle Model: COMP-sdL-25v

Length: 260mm

Width: 120mm

Height: 50mm

Weight: 125g

Warranty: 5 years
